Tuttnauer
T-EDGE 10|11 Autoclave
T-EDGE 10|11 Autoclave
Couldn't load pickup availability
Fully upgradeable tabletop autoclave with faster cycle times, reliability, and performance for busy practices.
*Price includes VAT, delivery and installation.
Overview
The Prestige T-Edge 10 and T-Edge 11 autoclaves are fully upgradeable tabletop sterilizers designed to deliver faster cycle times, greater reliability, and outstanding performance for busy practices. Engineered for rigorous infection control, these autoclaves accommodate a wide range of instruments—both wrapped and unwrapped— making them an ideal choice for dental, medical, and other clinical settings.
Key Features
- Fully Upgradeable – Start with a Class S unit and seamlessly upgrade to Class B when needed.
- Accelerated Cycles – Enjoy faster sterilization to keep your workflow efficient.
- Chamber Capacity Options – Choose between the T-Edge 10 (10-liter chamber) or T-Edge 11 (11-liter chamber.

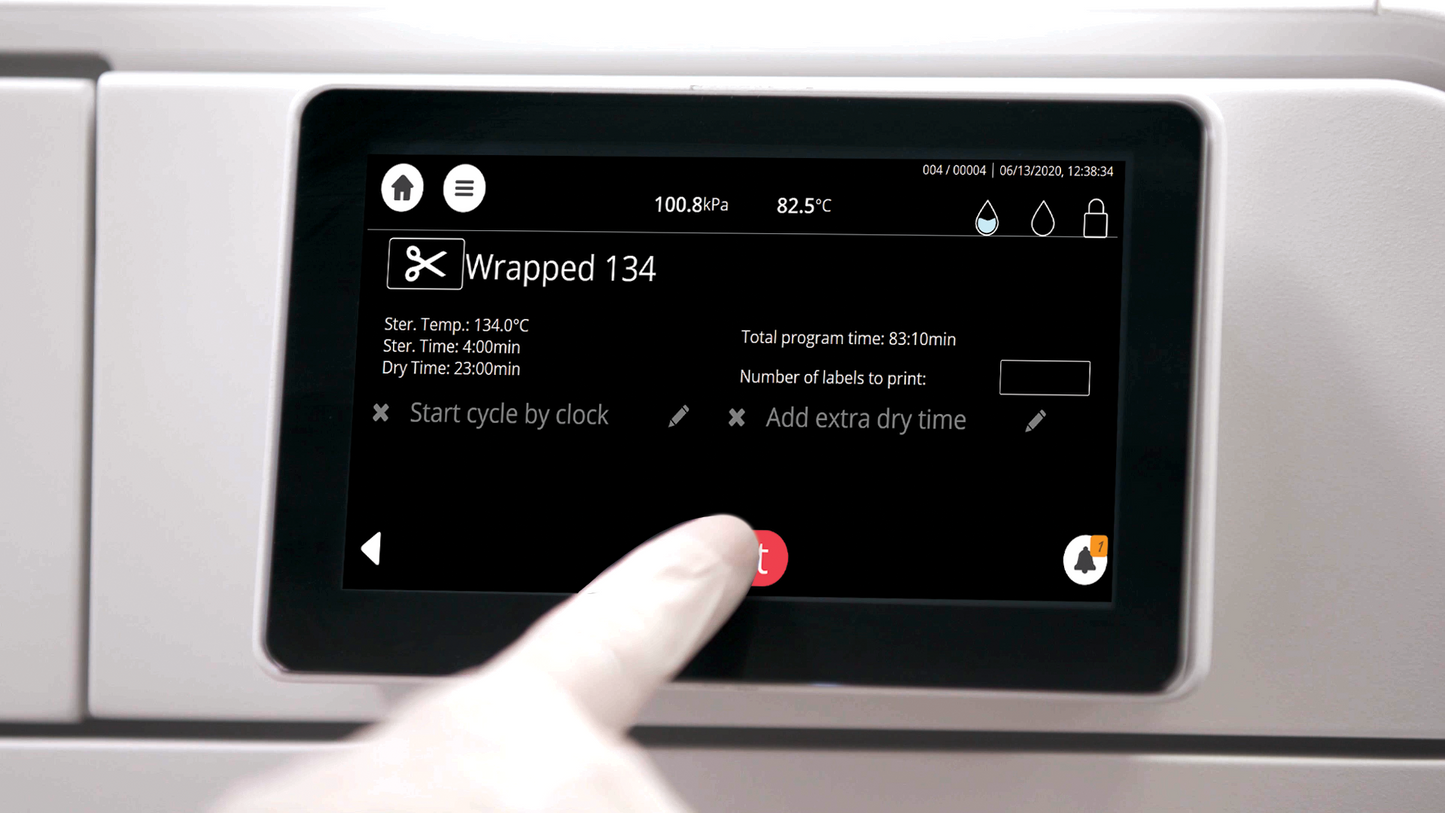

- User-Friendly Interface – Touch screen and clear display streamline operation.
- Reliable & Cost-Effective – Built with high-quality components to minimize maintenance and downtime.
Data & Software
- Comprehensive Cycle Storage – Stores up to 1,000 sterilization cycle records for easy tracking.

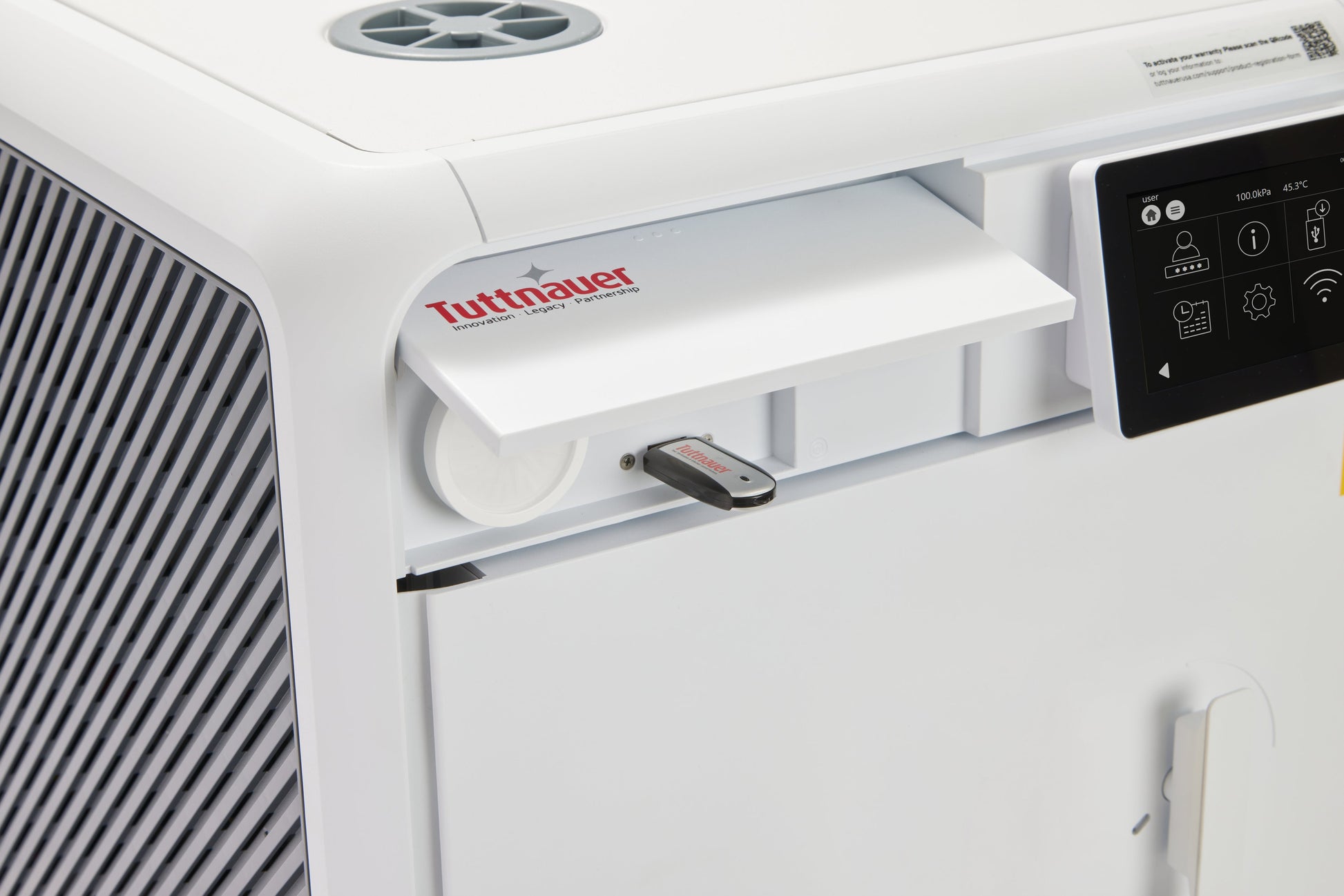

- Effortless Data Retrieval – Transfer cycle data to a PC or USB drive for digital record-keeping.
- Advanced Monitoring – Real-time cycle status updates and automated alerts help ensure consistent sterilization.
Sterilization Programs
| Program | Temperature | Sterilization Time | Dry Time |
|---|---|---|---|
| Unwrapped | 134°C | 4 minutes | 1 minute |
| Wrapped | 134°C | 4 minutes | 15 minutes |
| Heavy Duty | 134°C | 20 minutes | 15 minutes |
| Prion | 134°C | 18 minutes | 15 minutes |
| Handpiece | 134°C | 4 minutes | 3 minutes |
| Unwrapped | 121°C | 20 minutes | 1 minute |
Test Cycles: Vacuum, Bowie Dick, Helix, and Air Detection.
Technical Specifications
| Chamber Dim. Ø x L (mm) | Chamber Volume |
|---|---|
| T-Edge 10: 250 x 460 | T-Edge 10: 18 L |
| T-Edge 11: 280 x 460 | T-Edge 11: 23 L |
| Dimensions (W x H x D) | Tray Dimensions (W x H x D) |
| T-Edge 10: 480 x 500 x 580 mm | T-Edge 10: 421 x 189 x 20.5 mm |
| T-Edge 11: 510 x 500 x 580 mm | T-Edge 11: 421 x 207 x 20.5 mm |
| Weight | Power Supply |
| T-Edge 10: 51 kg | T-Edge 10: 50/60Hz, 230V-1Ph+N+GND |
| T-Edge 11: 56 kg | T-Edge 11: 50/60Hz, 230V-1Ph+N+GND |
| Number of Trays | Connections |
| T-Edge 10: 5 trays | T-Edge 10: 1 Ethernet port, 2 USB ports, WIFI, integrated automatic water filling and drain connection |
| T-Edge 11: 5 trays | T-Edge 11: 1 Ethernet port, 2 USB ports, WIFI, integrated automatic water filling and drain connection |
| Items Supplied | |
| T-Edge 10: Drain tube, tray holder | |
| T-Edge 11: Drain tube, tray holder | |
Standards & Directives
- EN 13060 – Compliant with European standards for small steam sterilizers.
- 93/42/EEC – Meets Medical Device Directive requirements.
- PED 2014/68/EU – Conforms to Pressure Equipment Directive.
F.A.Q.
What is the Warranty period?
24 months from the date of purchase. In this period, Prestige Medical shall repair or replace free of charge any parts which prove to be defective in workmanship and/or materials. The Warranty excludes the gasket, all internal furniture, and consumables.
Extended warranties are available on request.
