Compact & Efficient Autoclave with Precision Gauges for Laboratory & Medical Use
*Price includes VAT and delivery.
Description

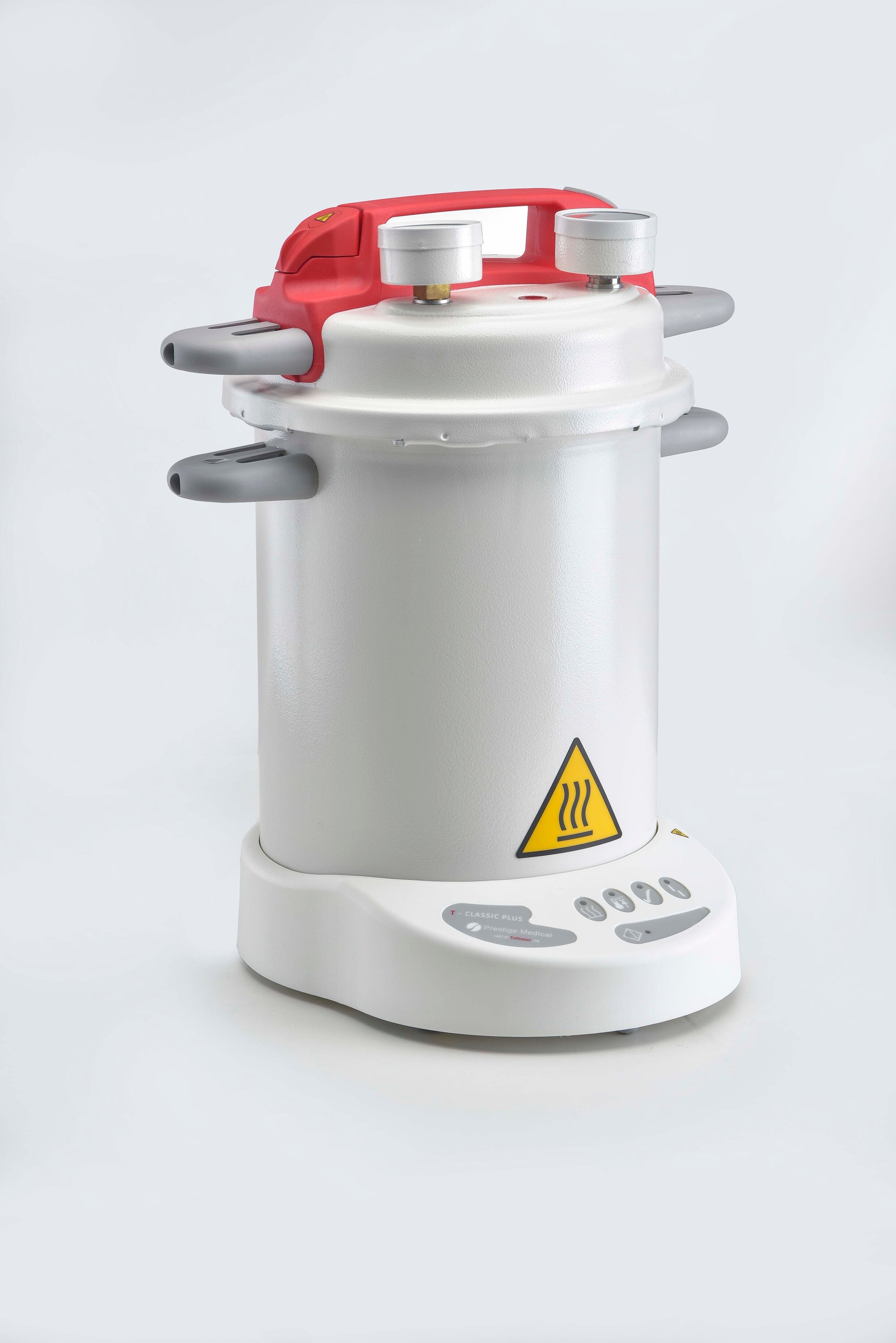

The Classic Plus Gauged is a lightweight, portable autoclave designed for effective sterilization at a higher temperature. With temperature and pressure gauges for precise monitoring, this professional-grade autoclave delivers reliable sterilization with simple one-touch operation. The unit's compact design makes it ideal for laboratories and medical facilities with limited space.
Fully automatic with intuitive controls, the Classic Plus Gauged operates at 126°C, providing enhanced sterilization capabilities while maintaining ease of use. The visible gauges allow for real-time monitoring of the sterilization process, ensuring optimal performance and safety.
Indication
Ideal for sterilizing laboratory instruments, solid loads, liquids, and media. Perfect for facilities requiring precise temperature and pressure monitoring during the sterilization process.
Features and Benefits

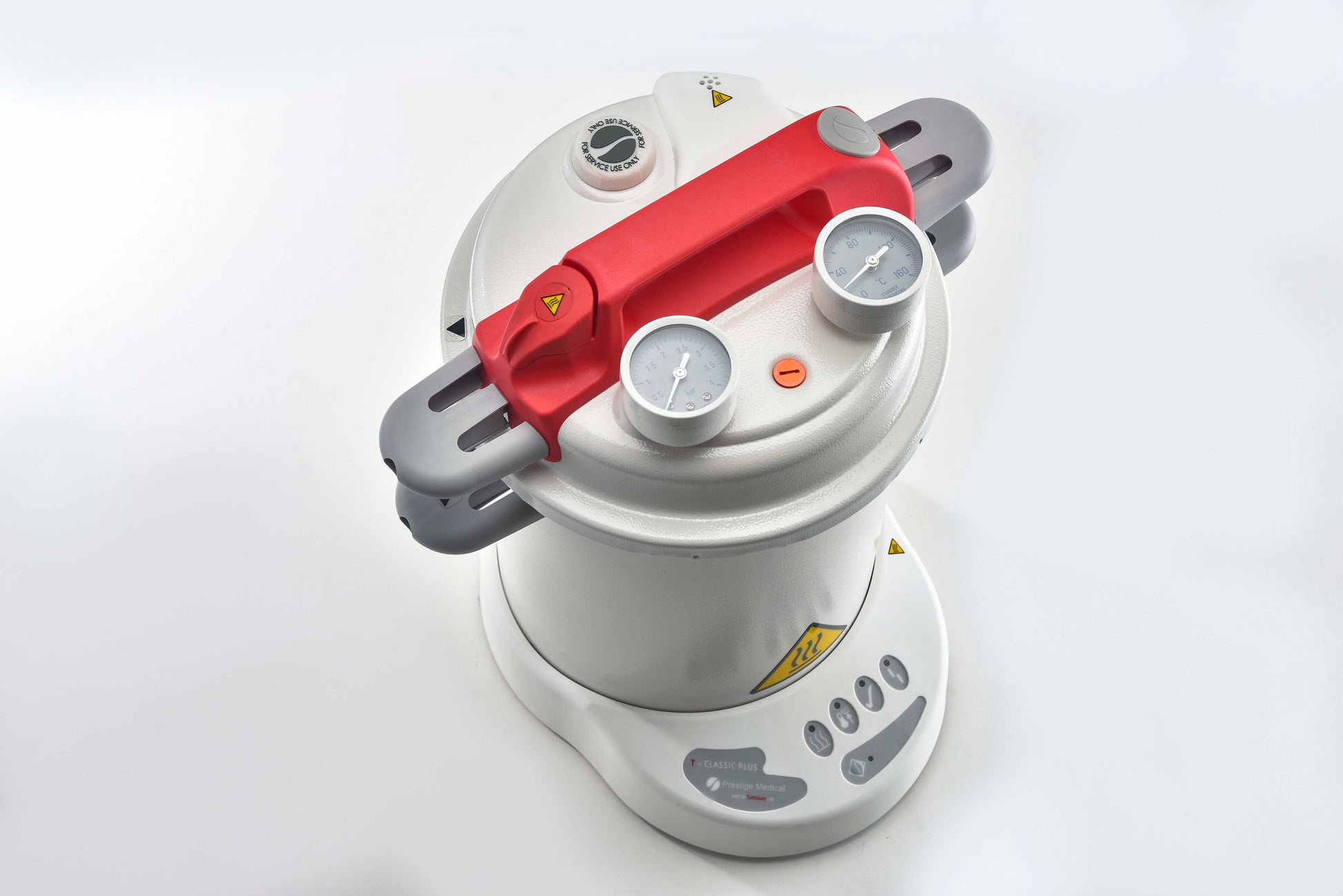

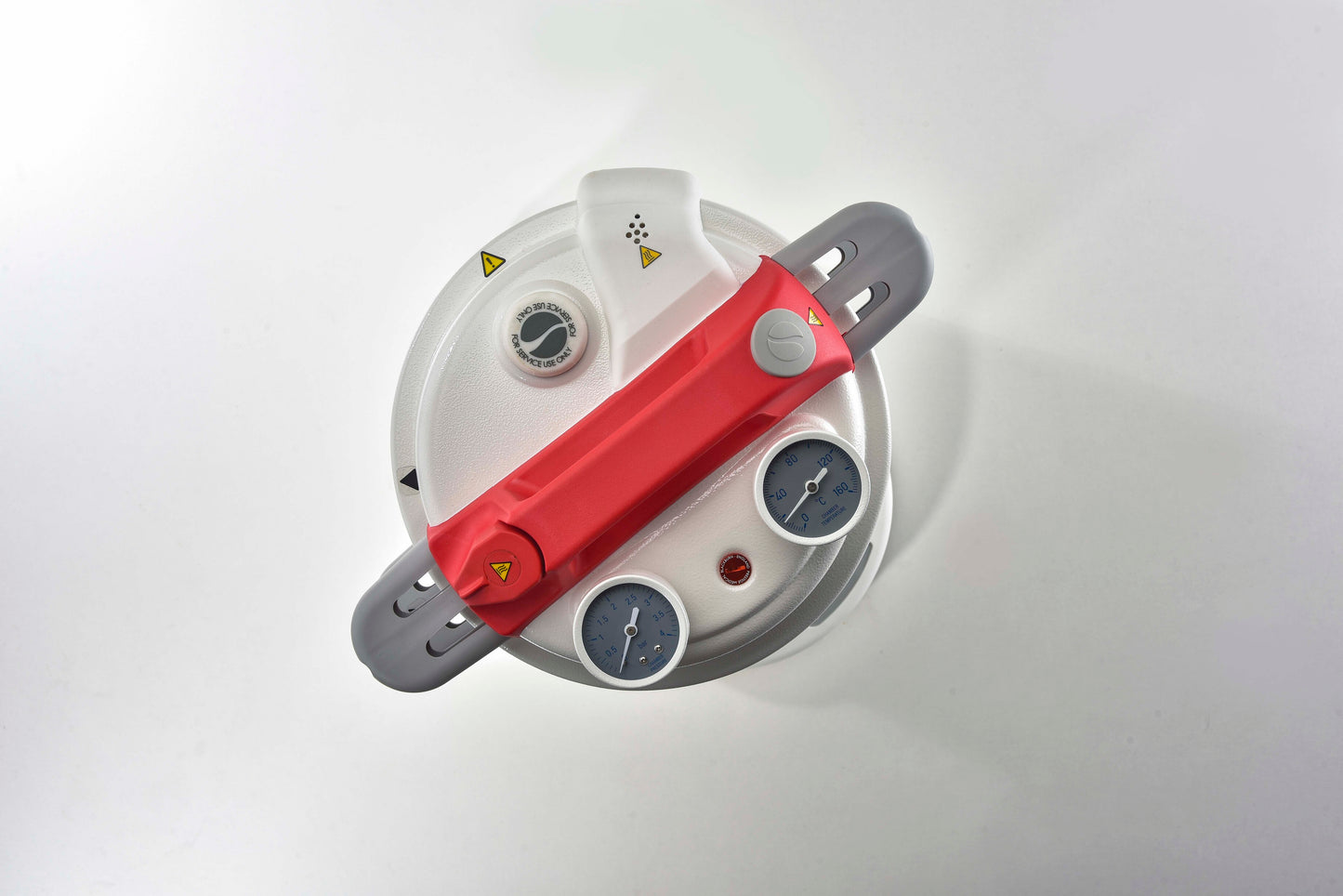

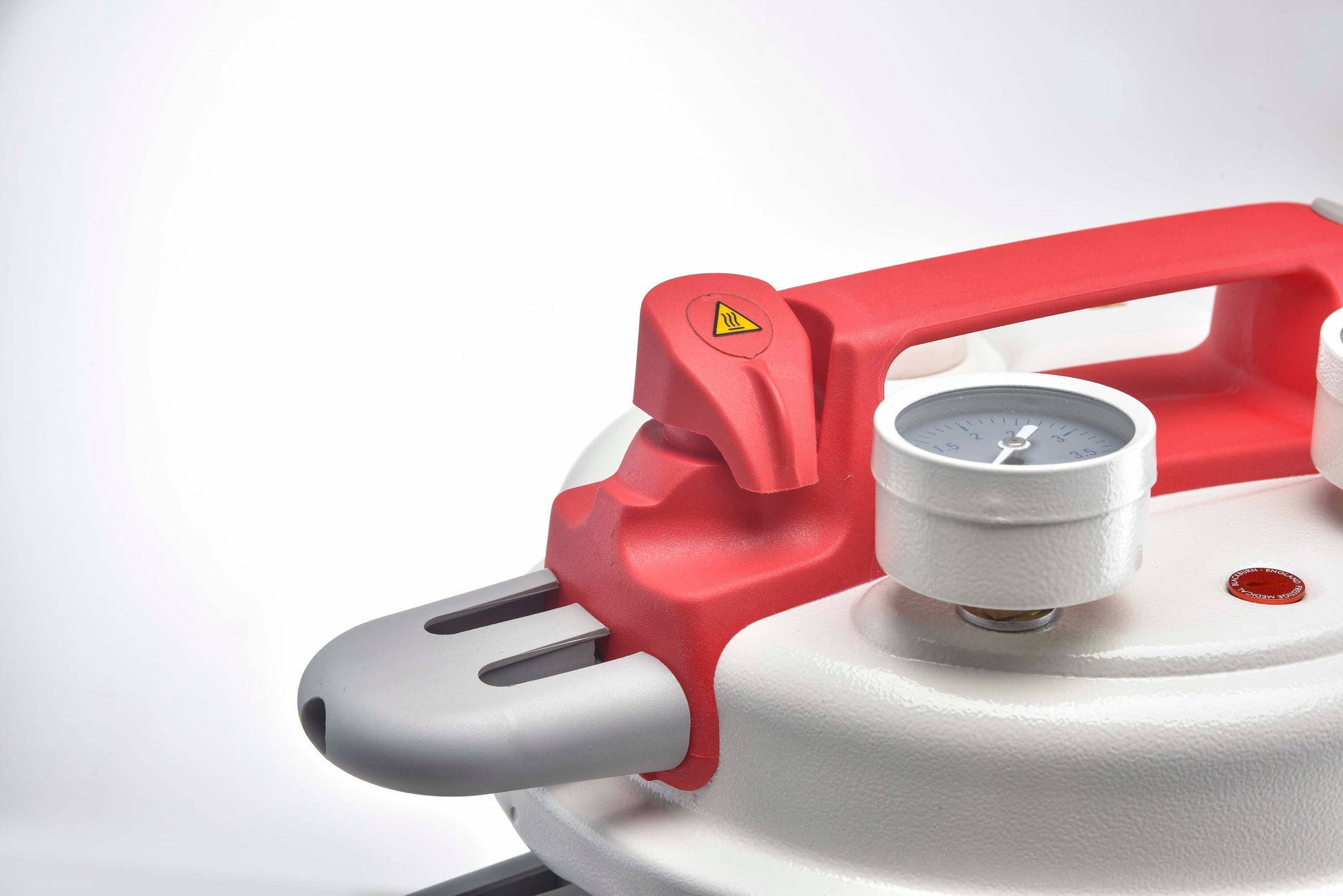

- Temperature & Pressure Gauges: Real-time monitoring of sterilization parameters for enhanced control and safety.
- Higher Temperature Operation: Sterilizes at 126°C for more effective pathogen elimination.
- Compact & Lightweight Design: Optimized for facilities with limited space, requiring minimal counter space.
- Simple One-Touch Operation: Intuitive controls for ease of use with minimal training required.
- Professional-Grade Performance: Guaranteed to meet your sterilization needs with reliable, consistent results.
- Portable Design: Easy to relocate as needed within your facility.
Technical Specifications
|
Specification
|
Value
|
|---|---|
|
Model Number
|
T-Classic Plus Gauged
|
|
Maximum Width Overall
|
340 mm
|
|
Maximum Height Overall
|
320 mm
|
|
Maximum Net Weight
|
6.25 kg
|
|
Chamber Diameter / Height
|
210 mm / 270 mm
|
|
Inner Chamber Dimensions (ø x D)
|
210 x 270 mm
|
|
Chamber Capacity
|
12 Litres
|
|
Maximum Instrument Length
|
268 mm
|
|
Maximum Load Weight
|
3 kg
|
|
Sterilisation Temperature
|
126 °C
|
|
Operating Pressure
|
1.4 Bar
|
|
Minimum Sterilisation Time
|
11 minutes
|
|
Cycle Time (Normal)
|
22 minutes
|
|
Voltage
|
230 V
|
|
Wattage
|
1500 W
|
|
Frequency
|
50–60 Hz
|
|
Printer
|
No
|
|
Temperature & Pressure Gauges
|
Yes
|
|
Furniture
|
Basket
|
|
Single Phase Power Supply
|
220–240 V, 50–60 Hz, 1500 W, 10 A
|
Presentation
The Classic Plus Gauged autoclave is available in a compact, tabletop design with visible temperature and pressure gauges, providing a professional sterilization solution for laboratories and medical facilities.
Compliance
- ISO 13485 2016 – Quality Management System
- UKCA UK MDR 2002
- Pressure Equipment Directive PED 2014/68/EU
- BS EN 61010-1 Safety standard for electrical equipment
- BS EN 61010-2-040 Safety requirements for electrical equipment for measurement, control and laboratory use
- BS EN 61326-1:2013 Electromagnetic compatibility
- EN ISO 14971:2016 - Application of Risk Management to Medical Devices
- The Waste Electrical and Electronic Equipment Regulations 201
F.A.Q.
What types of items can be sterilized?
The Classic Plus Gauged is designed for sterilizing laboratory instruments, solid loads, liquids, and media.
What is the sterilization temperature?
The unit operates at 126°C to ensure effective sterilization at a higher temperature.
How do the gauges benefit the sterilization process?
The temperature and pressure gauges allow for real-time monitoring of the sterilization process, ensuring optimal conditions are maintained throughout the cycle.
How long does each cycle take?
The normal cycle time is approximately 22 minutes, with a minimum sterilization time of 11 minutes.
What is the Warranty period?
12 months from the date of purchase. In this period, Prestige Medical shall repair or replace free of charge any parts which prove to be defective in workmanship and/or materials. The Warranty excludes the gasket, all internal furniture, and consumables.
Extended warranties are available on request.
Available Accessories
- Cassette
- Green Gaskets (2-pack and 4-pack options)
- Printer Rolls (10-pack)
- Power Cord
- Baskets (available for 9L and 12L autoclaves)
